Something hit it
Reversing into the bottom section is the honest number one. The impact knocks a roller out or bends the flange it rides in, and section damage usually comes with it.
Read more01 Component repairs
Garage door off track in Evanston, IL
A roller has left the track, and the door is now leaning, jammed or hanging crooked. Stop using the opener, keep everyone out from under it, and ring us before somebody tries to force it.
- Stop using the opener — forcing it is what bends sections
- Re-tracking plus the reason it came off in the first place
- Cables, rollers, hinges, brackets and track on the van
- Owner-operated in Evanston since 2011
02 What has actually happened
What “off track” means, and why we treat it as urgent
An off-track door is not a door that needs putting back. It is a door telling you that something moved — and until you know what moved, putting it back only buys a few weeks.
Start with what the hardware does. Every section carries hinges, every hinge carries a roller stem with a wheel on the end, and those wheels ride inside steel track. The track does not hold the door up. It holds the door in position. The weight — 130 pounds for a single steel door, up to 400 for an insulated double — is carried by the springs, through the lift cables, into the bottom brackets at the two bottom corners.
So when one roller leaves the track, three things go wrong at once. That section loses its guide and swings out of plane. The door racks, and the hinges take a twisting load nobody designed them for. The cable on the low side goes slack and unwinds off its drum, or takes a shock load and starts to fray. The door’s weight is now on parts that were only ever meant to guide it.
STOP
Do not press the button again. Unplug the opener at the ceiling outlet or switch off its breaker. Nearly every folded section and sheared bottom bracket we replace got that way because the door came off on Tuesday and somebody ran the opener twice more before Friday.
Why this is not a crowbar-and-a-neighbour job
Two things make an off-track door dangerous to poke at. The torsion spring above the opening is still storing the whole weight of the door and does not know anything has changed. And the bottom bracket at each bottom corner, where the lift cable terminates, is under that full tension whenever the door is down — unbolting one is how people end up in an emergency room. If a spring has broken too, the door is not moving by hand at all.
03 Before we arrive
How to make it safe without standing under the door
You cannot fix this with household tools. You can stop it getting worse, and all of these keep you out of the opening.
- Unplug the opener at the ceiling outlet, or kill its breaker. A remote pressed by a kid or a car visor turns a leaning door into a bent one. Tell the household it is out of service.
- Stay out of the door’s footprint. Look at it from well off to one side, or from the alley — never from underneath.
- Leave the red release cord alone unless the door is fully down and flat. On a racked door it can drop the whole weight onto whatever is still holding it.
- Do not lever, hammer or wedge a roller back in. Bent track does not straighten. It cracks.
- Take two photographs — one square-on, one from the side showing the track — and have them open when you ring (224) 505-2236.
- If the door is stuck open and the garage cannot be secured, say so on the phone — that is a different job from re-tracking a closed one.
The Consumer Product Safety Commission publishes guidance on garage door and opener hazards, and the theme never changes: a door already misbehaving is not one to stand under.
04 Root causes
The five things that put a door off its track — plus the Evanston one
Roughly in order of how often we find them on a hundred-year-old detached garage.
A lift cable let go
Cables fray for months at the bottom bracket end, where alley water and road salt collect. When one parts, that corner drops and the rollers pull out. Cable repair is the fix.
Read moreWorn rollers
Steel rollers with collapsed bearings drag instead of rolling. A dragging roller wanders, climbs the flange, and steps out. On original 1920s hardware this is routine — a nylon roller set ends it.
Read moreLoose or bent track
Track is lagged to the jambs and hung from the ceiling. In an old garage those lags bite into timber wet every spring for decades. Once the track moves, the door finds the gap. Track repair.
Read moreThe slab has settled
The Evanston special. Water in an unpaved alley washes the fines out of the sub-base under the front of the slab, the slab tips, and the jambs — with the track bolted to them — go out of plumb. The building moved, not the door.
It was forced while frozen down
A bottom seal freezes to the slab overnight, someone hits the wall button at seven, and the opener tries to tear the door off the floor. Emergency calls spike in January for this.
Read more
05 The local pattern
Why so many of these calls come from an alley
We do this work in Skokie and Rogers Park too. It is a different job there than behind a hundred-year-old two-flat in west Evanston.
The City grades more than 300 unpaved alleys each spring to deal with the ruts and standing water that build up over winter — the alley maintenance programme says so in plain language. Grading fixes the surface. It does nothing about what the water already did underneath, which is run under the edge of your garage slab and carry the fines out of the sub-base with it. The sewers compound it: the whole city is on a combined system, and the flow restrictors are deliberately designed so heavy rain backs up at street and alley level rather than into basements. Good for your basement. It also means standing water at your threshold is a normal event here, several times a year, for the life of the building.
Eventually the front edge of the slab drops a quarter inch, and the track lagged to those jambs is no longer plumb. The door runs to one side, two rollers take the load, and one cold morning one steps out. The whole pattern is in what goes wrong with Evanston alley garages.
- Vertical track out of plumb from a tipped slab
- Rusted bottom brackets and frayed cable ends
- Jamb timber too soft to hold a lag screw
06 The honest bit
Why re-tracking alone is temporary if the building has moved
There are two versions of this job, and they cost different amounts because they are different jobs.
Version one: the door moved
The opening is still square, both tracks plumb, the slab flat at the threshold. Something knocked a roller out, a bearing collapsed, or a cable jumped a drum. We put it back, replace what failed, tension both cables evenly, and the door behaves for years. Most calls are this one.
Version two: the building moved
Measure the opening corner to corner both ways and you get two different numbers. A level on the vertical track leans in at the bottom. There is a crack running back from the threshold, or the alley apron has dropped away from the floor. Put the rollers back into that opening and the door runs out of plumb from the first cycle, hunts to one side, wears the same two rollers, and comes off again — usually within a season, usually on a cold morning. Anyone who re-tracks it and drives away has sold you a few weeks.
What we do instead is unglamorous: shims behind the track brackets to bring the track back to plumb, new anchors or a sistered jamb board where the timber will not hold, replacement track where a section is kinked. Where the slab has genuinely gone — cracked through, dropped an inch, pumping water — we tell you the real repair is concrete, not door work. We will not pretend a shim is a foundation.
A three-minute check you can do yourself
- Door closed, opener unplugged: hold a spirit level against each vertical track. Both should be plumb and read the same.
- Measure the opening diagonally, both ways. More than about a quarter inch of difference and the opening has racked.
- Sight along the floor at the threshold. A dip, a lip at the apron, or a crack under a jamb tells you where to look.
If that says the building moved, mention it when you call — it changes what goes on the van, and lets us talk track work versus a plain re-track before we are in your alley. Where a door is past correcting, replacement on a squared-up opening is sometimes cheaper.
07 The visit
What actually happens when we get there
Four stages, in this order, every time. The order is the safety.
Secure it before diagnosing it
Locking pliers on the vertical track below the bottom roller, opener disconnected and unplugged, spring condition checked from a safe angle. Nothing moves until the door cannot.
Rollers back in, in sequence
Sections are eased back into the track from the end that racked, with the door supported the whole way. The part that looks trivial in a thirty-second video, and is not.

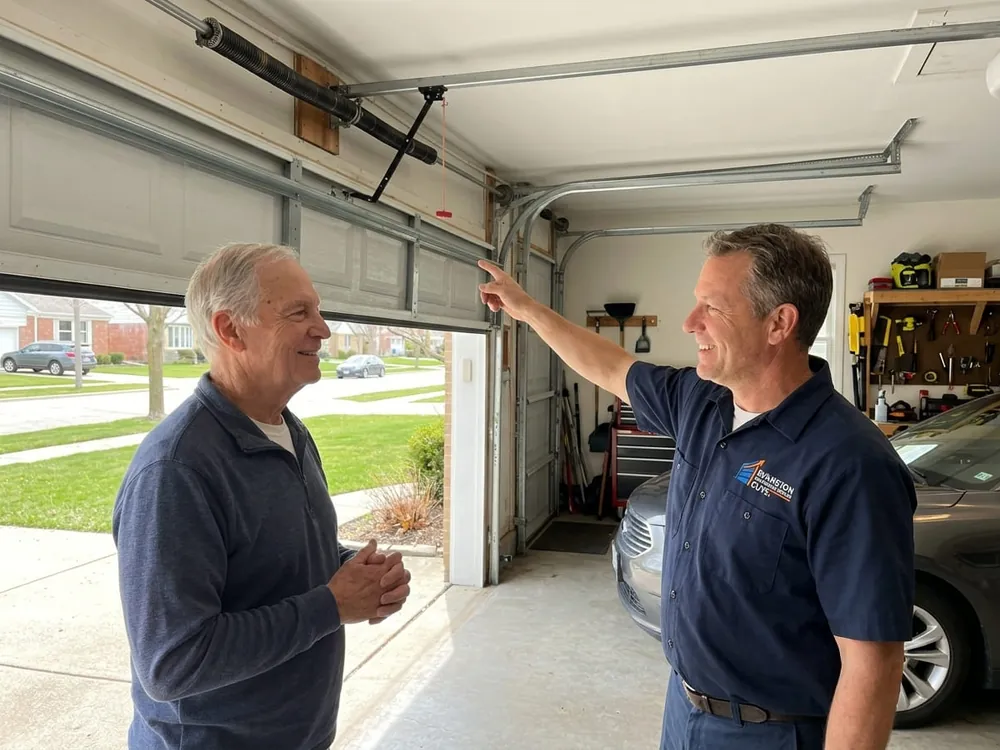

Measure the opening, not just the door
Both tracks checked for plumb, the opening measured on both diagonals, jamb timber probed, slab checked at the threshold. This is where you learn which version above you have.
Cables, brackets, then a safety test
Cables re-seated and tensioned equally on both drums, rollers and hinges replaced, balance checked by hand, force and limits set, both photo-eyes tested.
Bent track gets replaced rather than beaten straight, and we work to the published DASMA guidance on doors and hardware. Straightened track has a memory, and it lets rollers out again.
08 Read your own door
What you can see, and what it usually means
Look from the side, from a safe distance, opener unplugged. This is the sorting we do on the phone.
| What you can see | What it usually means | What to do now |
|---|---|---|
| One roller out near the top, door otherwise straight | A knock, a worn roller stem, or track spread at the curve | The least bad version — leave it and ring us |
| Door leaning hard, big gap at one jamb | A lift cable snapped or jumped its drum and that corner dropped | Do not touch the release cord. Keep everyone clear |
| It came off after somebody backed into it | Bent section, bent track, or a sheared bottom bracket | Photograph it from the side before anything moves |
| Track visibly bent or pulled off the jamb | Lag screws have lost their bite in old timber | Do not straighten it by hand |
| Off track, and the slab is cracked or sunk at the threshold | The building has moved under the track — the alley-garage classic | Say so when you ring. It changes what we bring |
| Bottom corner bent up and outward | Forced while the bottom seal was frozen to the slab | Stop using it — the bottom bracket may be loose |
Not on the list? Ring (224) 505-2236 and describe it. General garage door repair covers the rest, and our hours are on the contact page.
06 Questions we get asked
Off-track garage door questions from Evanston homeowners
The questions that come up on nearly every one of these calls, answered properly.
Can I put my garage door back on the track myself?
<p>Physically, sometimes. Safely, almost never — and the failure mode is severe. The springs are fully loaded whether the door is on the track or not, the bottom brackets at each corner are under that load, and a racked door is held by friction that can let go without warning. The other problem is that the rollers came out for a reason. Levering them back without finding the reason means doing it again, usually in worse weather. If the door is fully down and stable, leave it down, unplug the opener and call <a href="tel:+12245052236">(224) 505-2236</a>.</p>
How long does an off-track door take to fix?
<p>A clean single-roller job with sound track and cables is often under an hour. A door that has been run on the opener two or three more times after coming off is a different afternoon: folded sections, kinked track, a cable to replace, sometimes a bottom bracket. If the opening itself has racked because the slab moved, we may be shimming and re-anchoring track as well. We tell you which of those you have once we have measured, before we start, not after.</p>
Is the door ruined once it has come off the track?
<p>Usually not. Most doors we re-track carry on for years. What ruins them is what happens next — the two or three extra cycles that fold a section, tear a hinge out or twist the top fixture. If a single section is damaged and that door line still has panels available, <a href="/services/panel-replacement/">replacing one section</a> is a real option. If two or more are creased and the door is already twenty years old and uninsulated, we will give you the arithmetic on <a href="/services/garage-door-replacement/">replacing the door</a> rather than sell repairs that add up to the same money.</p>
The door came off track and now the opener grinds. Are those related?
<p>Almost certainly. When the door binds, the opener keeps pulling against it, and the plastic drive gear in the opener head is the softest thing in that chain — so it strips. You hear the motor run with nothing happening. That is usually a <a href="/services/garage-door-opener-repair/">gear kit job</a> rather than a new opener, and much cheaper than a replacement unit. Worth doing on the same visit, because the opener has to be re-set to the corrected door anyway.</p>
My garage slab has cracked and sunk at the front. Does the concrete have to be fixed first?
<p>Not usually, and we would rather you did not spend that money first. Small movement — a quarter inch, half an inch — we can shim and re-anchor around, and the door runs properly again. What we will tell you honestly is whether you are buying a permanent fix or a good few years. Where the slab has dropped an inch, pumps water, or has broken clean through under a jamb, no amount of door hardware makes that go away, and we will say so rather than take the job twice.</p>
Can you get my car out if the door is jammed shut?
<p>Yes, and it is a common first question, particularly in a snow-route week when the car cannot legally sit on the street overnight. Do not force it yourself. Depending on how the door racked, we will either secure and re-track it enough to lift it safely, or clamp and support it open so you can move the vehicle while we do the rest. What we will not do is have you drive out from under a door that is being held up by friction.</p>
Why did the door come off track during a cold snap?
<p>Cold does not knock rollers out on its own, but it finishes off everything already marginal. Old grease in steel roller bearings stiffens, so a tired roller drags instead of turning. Steel gets less forgiving, so a frayed cable that would have survived October parts in January. And the bottom seal freezes to the slab — with <a href="https://www.weather.gov/lot/chicago_normals" target="_blank" rel="noopener nofollow">121 days a year</a> at or below freezing here and a January average high of 31.6°F, water melts by afternoon and refreezes overnight all winter. Then the opener tries to tear a frozen door off the floor, and something gives.</p>
